220VAC±10% Output Voltage IP67 Waterproof Ultra-Low Power Consumption (~6W) Power Supply Device for Recloser with Capacitive Voltage Extraction

Detalhes do produto

Destacar

220VAC±10% Output Voltage Power Supply Device

Deixe um recado

Descrição de produto

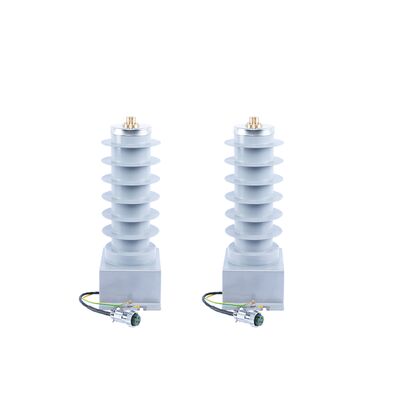

Power Supply Device for Recloser

Electrical Performance Index

Serial Number	Categories	Unit	Index
1	Output Voltage	V	220VAC±10%
2	Output Power	W	10
3	Working Temperature	ºC	-40~+70
4	Capacitor Dimension	mm	Φ129*330
5	Main Size	mm	18613575
6	Heat Dissipation Structure	-	Insulating Resin Potting
7	Package Structure	-	Plastic & Metal Shell
8	Waterproof Level	-	IP67

Advantages of Our New Solution to Recloser

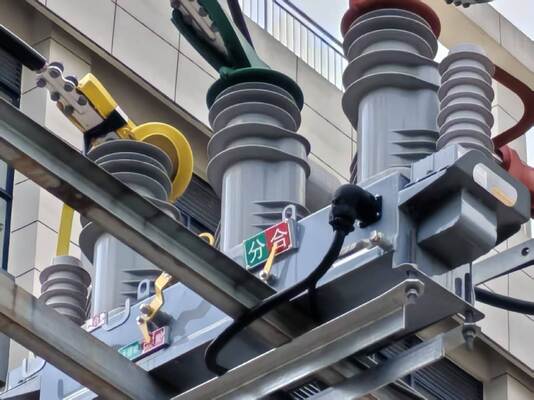

Innovative Power Sourcing: Utilizes a capacitive voltage extraction device to draw power directly from high-voltage lines, supplying stable energy to both the recloser's internal mechanism and FTU (Feeder Terminal Unit).
Dual-Power Assurance: Dual-supply mode ensures uninterrupted FTU operation.
PT Elimination: Completely replaces traditional voltage transformer (PT) power supply and its inherent flaws.
Ultra-Low Power Consumption: Features an energy-efficient controller, reducing operational costs (Traditional: 40-60W | New: ~6W).
Quick and Efficient Installation: Streamlined field deployment process.
Optimized Maintenance: Zero PT maintenance required, slashing long-term labor and upkeep costs.
Flexible Configuration:
- As a Sectionalizer: Only 1 capacitive extraction unit needed.
- As a Segment Switch: Only 2 capacitive extraction units needed.
Safety & Reliability:
- Eliminates explosion risks entirely.
- Sampling accuracy unaffected by ambient temperature.
