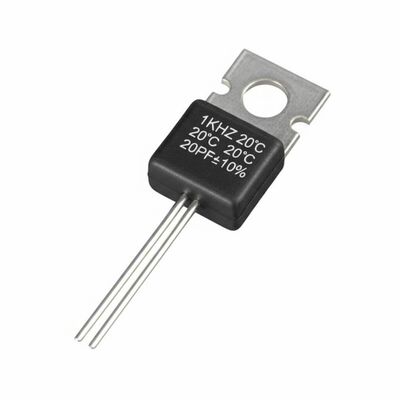

High Voltage Ceramic Capacitor 1KHZ 20℃ 20PF±10％ for Live Line Indicator and Power Distribution Systems

  • High Voltage Ceramic Capacitor 1KHZ 20℃ 20PF±10％ for Live Line Indicator and Power Distribution Systems
Lugar de origem XIAN, CHINA
Marca XIWUER
Certificação ISO9001,ISO14001,ISO45001
Número do modelo CT8-2- 12KV-20PF
Quantidade de ordem mínima 1 peça
Preço Negociável
Detalhes da embalagem caixa
Tempo de entrega 5-7 dias
Termos de pagamento L/C,T/T
Habilidade da fonte 8.000.000 um o ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Capacitance 1KHZ 20℃ 20PF±10％ Dielectric loss at 1.0V and 1kHz 1V，1KHZ，20-25℃，＜0.4%
Nominal working voltage 12KV Power frequency withstand voltage 48KV · 1min
Destacar

1KHZ High Voltage Ceramic Capacitor

,

20℃ Ceramic Capacitor

,

20PF±10％ HV Ceramic Capacitor
Deixe um recado
Descrição de produto
Reliable Ceramic Capacitor 12KV 20P For Live Line Indicator High Voltage Ceramic Capacitor
High voltage presence signaling device with working frequency up to 30MHz 12KV-20PF
Features
  • For cryogenic quality, the temperature vs. capacitance relationship is 0.5%
  • Up to 30 MHz working frequency, extremely stable ultra high frequency
Applications
  • Power line coupling systems for Internet and telecom are available with excellent voltage characteristics
  • Power Distribution Systems and Surge Arresters
Dimension
High Voltage Ceramic Capacitor 1KHZ 20℃ 20PF±10％ for Live Line Indicator and Power Distribution Systems 0
Technical Specifications
Voltage Rating Nominal Capacitance (pF) Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V		 Power Frequency Withstand Voltage
(in the insulation oil)		 Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
3.6kVac 230 210~240 32kV AC/5min 3.96kV AC≤10PC 40
7.2kVac 5 4~6 41kV AC/5min 7.92kV AC≤10PC 60
7.2kVac 40 36~44 41kV AC/5min 7.92kV AC≤10PC 60
7.2kVac 150 140~170 41kV AC/5min 7.92kV AC≤10PC 60
12kVac 5 4~6 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 20 18~22 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 40 36~44 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 50 45~55 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 125 110~140 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 200 180~210 52kV AC/5min 13.2kV AC≤10PC 75
12kVac 300 270~330 52kV AC/5min 13.2kV AC≤10PC 75
24kVac 5 4~6 70kV AC/5min 26.4kV ac≤10PC 125
24kVac 15 13~17 70kV AC/5min 26.4kV ac≤10PC 125
24kVac 35 35~42 70kV AC/5min 26.4kV ac≤4PC 125
24kVac 50 45~50 70kV AC/5min 26.4kV ac≤10PC 125
24kVac 80 70~90 70kV AC/5min 26.4kV ac≤10PC 125
24kVac 150 125~180 70kV AC/5min 26.4kV ac≤5PC 125
24kVac 200/400/500 180~220 70kV AC/5min 26.4kVac≤10PC 125
40.5kVac 5 4~6 115kV AC/5min 44.5kV ac≤10PC 185
40.5kVac 10 8.5~11.5 115kV AC/5min 44.5kV ac≤5PC 185
40.5kVac 45 40~50 115kV AC/5min 44.5kV ac≤10PC 185
40.5kVac 100 90~110 115kV AC/5min 44.5kV ac≤10PC 185
High Voltage Ceramic Capacitor 1KHZ 20℃ 20PF±10％ for Live Line Indicator and Power Distribution Systems 1
Company Overview
Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city covering an area of 4000 ㎡, with 2300 employees including about 580 technicians (135 engineers and 21 senior engineers). The company has total assets of 315 million RMB Yuan and fixed assets of 137 million RMB Yuan, operating as a large enterprise mainly engaged in producing electronic components.

The company has the largest production scale of Varistor, SPD (Surge Protective Device) and HV Ceramic Capacitor in China, with the following main products:
  • Varistors & SPD
  • HV Ceramic Capacitor
  • Capacitive Voltage Divider
  • Thermistor
The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland. The annual production capacity of the two leading products has reached 5 million pcs and 150 million pcs respectively, with market holding rates in China of about 10% and 30% respectively through continual technical innovation.

Varistors and SPD produced by the company enjoy great reputation in the international market, being exported to many countries and areas such as Japan, USA, Hong Kong etc., with customers including GE in USA and LG in Korea. The products are also sold to Spain and India in large quantities.

The company's product quality, technical capacity, and model completeness are all leading in China. The main products have obtained CCEE, UL, VDE & TUV approval. The quality system was established according to ISO9000 requirements since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then obtained ISO9001 certification by British organization in 2000. The company was the first in China's North-west area to receive ISO9000 certification in its occupation. The company also holds ISO18000 certification.

With excellent quality assurance capacity, technical development capacity and rich manufacturing experience, the company is able to supply satisfied goods and service to customers worldwide with competitive pricing and short delivery times.
