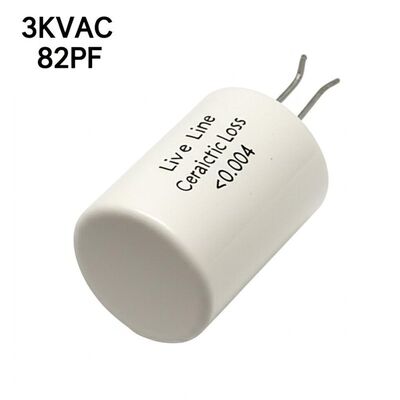

3KVAC 82PF Live Line Ceramic Capacitor with Dielectric Loss < 0.004 for High Voltage Switch Gear

  • 3KVAC 82PF Live Line Ceramic Capacitor with Dielectric Loss < 0.004 for High Voltage Switch Gear
Lugar de origem XIAN, CHINA
Marca XIWUER
Certificação ISO9001,ISO14001,ISO45001
Número do modelo CT811-3kVAC-82pF
Quantidade de ordem mínima 1 peça
Preço Negociável
Detalhes da embalagem caixa
Tempo de entrega 5-7 dias
Termos de pagamento L/C,T/T
Habilidade da fonte 8.000.000 um o ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nominal working voltage 3kV Insulation resistance ≥10000MΩ
1.2 / 50µs lightning impulse 40 KV(peak)
Destacar

3KVAC Live Line Ceramic Capacitor

,

82PF High Voltage Ceramic Capacitor

,

Dielectric Loss < 0.004 HV Ceramic Capacitor
Deixe um recado
Descrição de produto
High Voltage Switch Gear Live Line Ceramic Capacitor 3KVAC 82PF
High voltage switch gear live line ceramic capacitor designed for industrial electrical applications.
Application
Primarily used for voltage divider capacitors in charged display systems. The capacitor's capacity can be adjusted to modify the voltage divider ratio. Must be stored in the insulator when not in use.
Features
  • Miniature and non-polar design
  • Excellent charge and discharge efficiency
  • Low dissipation with superior insulation and stability
  • Available in various series and assembly methods
Technical Parameters
  • Dielectric loss: < 0.004 at 25°C
  • Partial Discharge: ≤ 10 PC
  • Insulation resistance: ≥10000MΩ
  • 1.2 / 50µs lightning impulse: 40 KV(peak)
Specifications
Rated Voltage Withstand Voltage In Oil Lightning impulse KV 1.2/50 μs D L1 L2 Screw
3KVAC 80PF 30KVAC/1min 40 13±0.5 22±1 42±1 M5*6
3KVAC 180PF 23±1 43±1
3KVAC 82PF 15±1 25±1 45±1
6KVAC 40PF 36KVAC/1min 60 13±1 29±1 49±2
6KVAC 135PF 15±1
6KVAC 150PF 16.5±1 32±2 52±2
12KVAC 20PF 50KVAC/1min 75 18±1 35.5±2 55±2
12KVAC 40PF 38±2 58±2
12KVAC 60PF 36±2 56±2
12KVAC 100PF 36±2 56±2
12KVAC 150PF 15±0.5 40±2 60±2
12KVAC 200PF 18±1 42±2 62±2
15KVAC 75PF 60KVAC/1min 105 16.5±1 38±2 58±2
15KVAC 250PF
15KVAC 500PF 25±1 58±2 78±2
24KVAC 15PF 90KVAC/1min 125 15±0.5 47±2 67±2
24KVAC 80PF 16.5±1 50±2 70±2
24KVAC 250PF 20±1 55±2 75±2
35KVAC 10PF 110KVAC/1min 185 17±1 60±2 80±2
35KVAC 45PF 17±1 65±2 85±2
